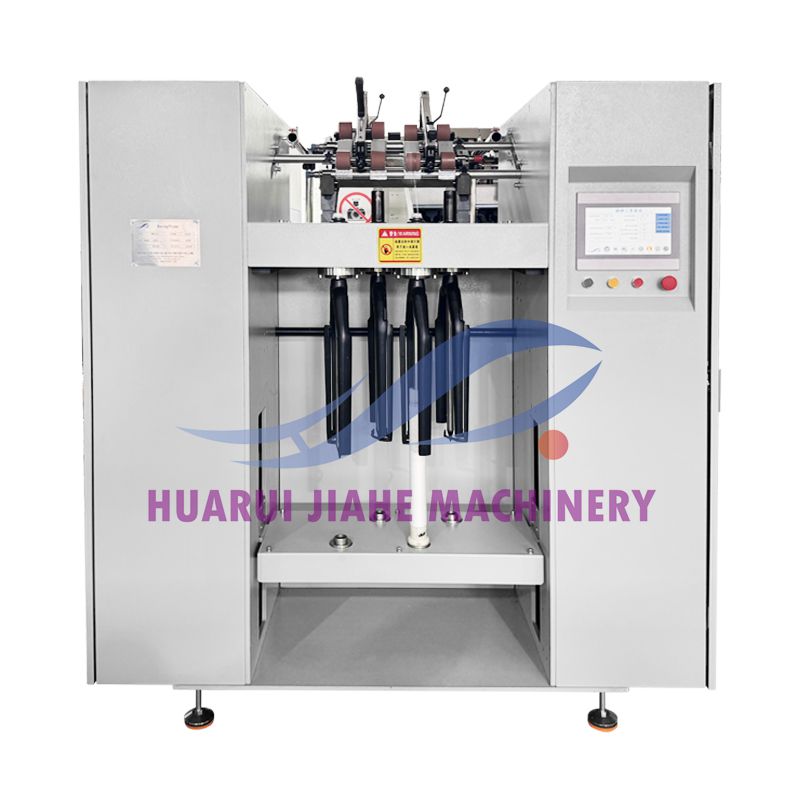

Mini Roving Frame

Short Description:

Mini Roving Frame

Application

This machine is one of the mini size spinning series machines. It covers a small area, is easy to operate and adjust. It is suitable for the rapid spinning test of a small amount of raw materials, and is very suitable for schools, research institutes and R&D centers.mini size spinning series machines.

The roving proof machine is controlled by several motors. The adjustment is very convenient and can be set up on the touch screen.

Send email to us

Product Detail

Product Tags

2.Specification

Name	Technical characteristic	Remark
NO of spindle	4
Spindle gauge（mm）	108
Section gauge（mm）	432
Fiber length（mm）	50 to 112mm
Adaptable Counts（tex）	200～1000
Drafting type	4-Roller
Draft range	5～50
Twist（T/M）	50～250
Flyer type	Suspension
Flyer speed（rpm）	200～1200
Press type	Pendulum arm spring weighting
Power	2.3Kw
Voltage	3-phase, 220V, 50/60 Hz	Customized
Control system	PLC control+human computer interface
Dimension	（L×W×Hmm）：1500×1000×1600
