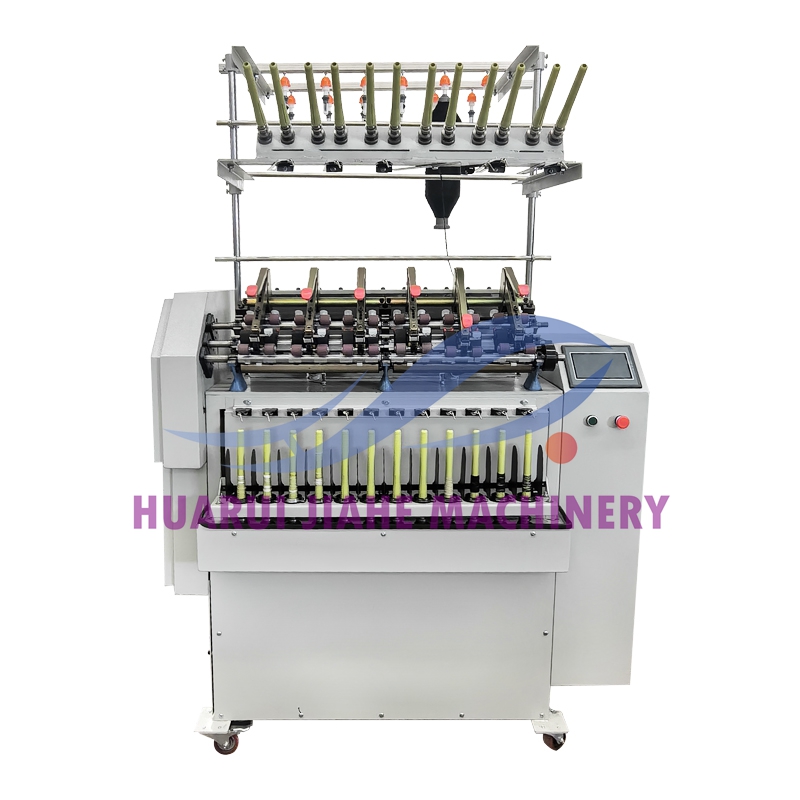

Mini Ring Spinning Machine

Short Description:

Mini Ring Spinning Machine
Application
This machine is one of the Mini size spinning series machines. It covers a small area,
is easy to operate and adjust. It is suitable for the rapid spinning test of a small amount
of raw materials, and is very suitable for schools, research institutes and R&D centers.
The spinning proof machine has wool and cotton type,it can spinning yarn according
to different length fiber.The draft count,swift and spindle speed can be set up by touch
screen.




Product Detail

Product Tags

Name

Technical characteristic

Remark

No.of spindles 6 -12spindles Wool or cotton
Draft type 3 line rollers,double aprons(long and short),pendulum arm weighting
Adaptive fiber Cotton,chemical fiber,wool and blending22-51mm
Adaptive count 10-50tex
Spindle speed 2000~19000 rpm
Draft ratio 10~80
Draft ratio in the rear 1.061.7
Spindle gauge 70mm
Twist direction Z or S
Spindle drive type Timing belt drive
Power Total1.06Kw 1.26Kw
Control type PLC control+human computer interface
Dimension L×W×H mm):880×600×2060 6 spindles



mini spinning machine 10
