Double Cylinder Double Doffer Carding Machine
Use
This machine include double cylinder、double doffer、four disorder roller and web stripping. All rollers of the machine are subject to conditioning and qualitative treatment before precision processing. The wallboard is made of cast iron. Use high-qulity card wire.It has the advantages of strong carding ability and high output.
Working principle
This equipment deeply open and card fibers into single state by card wire and matching the speed of each roll.At the same time,deeply clean dust and make even cotton web.

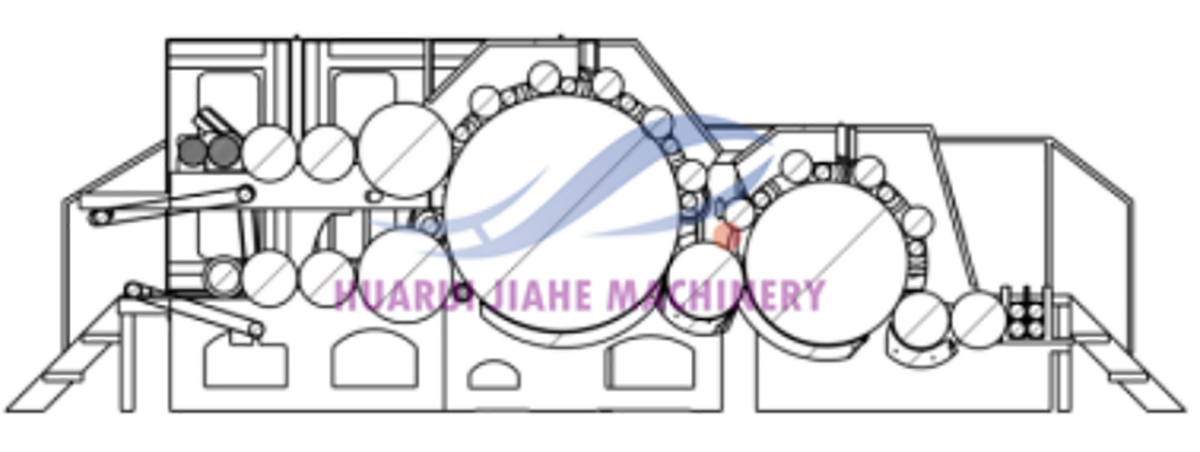

The structure of this machine is four feeding rollers, double cylinder and double doffer, which is suitable for polyester, polypropylene, waste recycling fiber and other chemical fibers, as well as carding and netting some natural fibers(sheep wool, alpaca fiber and others).
Specification
| (1)Work width | 1550/1850/2000/2300/2500mm |
| (2)Capacity | 100-500kg/h,depend on fiber type |
| (3)Cylinder diameter | Φ1230mm |
| (4)Doffer diameter | Φ495mm |
| (5)Feeding roller diameter | Φ86 |
| (6)Work roller diameter | Φ165mm |
| (7)Stripping roller diameter | Φ86mm |
| (8)Linker-in diameter | Φ295mm |
| (9)Diameter of stripping roller used for web output | Φ219mm |
| (10)Disorder roller diameter | Φ295mm |
| (11)Installed power | 20.7-32.7KW |
Mechanism characteristics
(1) The frames on both sides are welded by high-quality steel plates, and the middle is supported by strong steel, structure is stable.
(2) The feeding roller is equipped with metal detector and self stop reverse device to ensure the safe operation of the carding machine.
(3) There are working platforms on both sides of the carding machine, which is more convenient for use and maintenance.
