Automatic Small Cotton Gauze Roll Making Machine

Short Description:

Automatic Small Cotton Gauze Roll Making Machine

1.  Automatic Small Cotton Gauze Roll Making Machine  is also called Automatic bandage cutting machine, which is mainly used to cut the finished bandage rolls.


Product Detail

Product Tags

  • 1. Product Introduction:

Automatic bandage cutting machine is committed to reducing labor and increasing the safety of bandage cutting process. This automatic bandage cutting machine is mainly used for bandage cutting. It has simple and compact structure, high degree of automation, original saw machine servo control, PLC computer programming, variable frequency speed regulation, automatic feeding, automatic cutting and other functions. As long as the number of bandages to be cut is set on the touch screen, the length of each bandage can be automatically calculated according to the setting requirements to cut. The bandage cutting effect is beautiful and uniform, and it can be connected to the packaging machine.

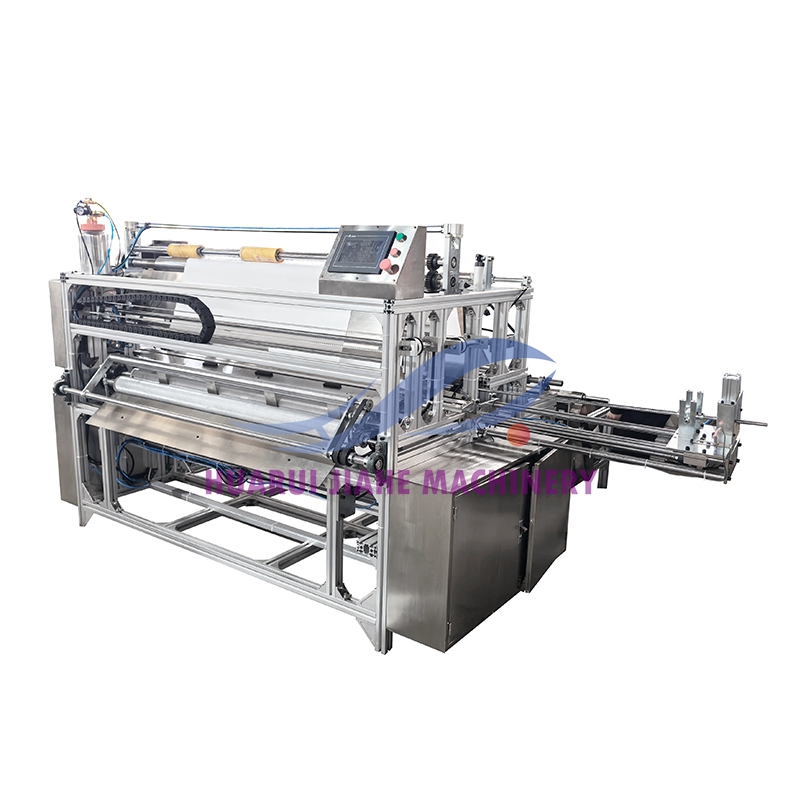

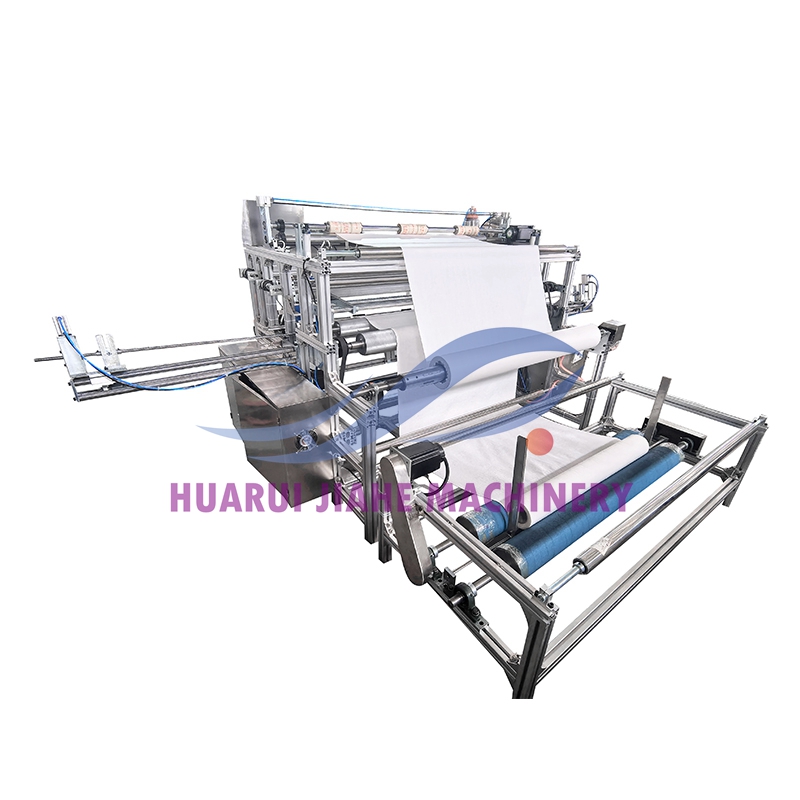

4-2 4-1

  • 2. Technical Parameters:
Model FG-Automatic bandage cutting machine
Cut/min Equipment running speed, this speed is adjusted appropriately according to the thickness, softness and hardness of the paper roll (0~120)
Automatic counting Can
Machine length 3200mm
Machine width 1200mm
Machine height 1800mm
Installed capacity 4kw
Power supply voltage 3*380v
Power supply frequency 50hz
Compressed air consumption 0.6Mpa2m3/h
Net weight 1000kg
Plc brand Xinjie
Screen brand Xinjie

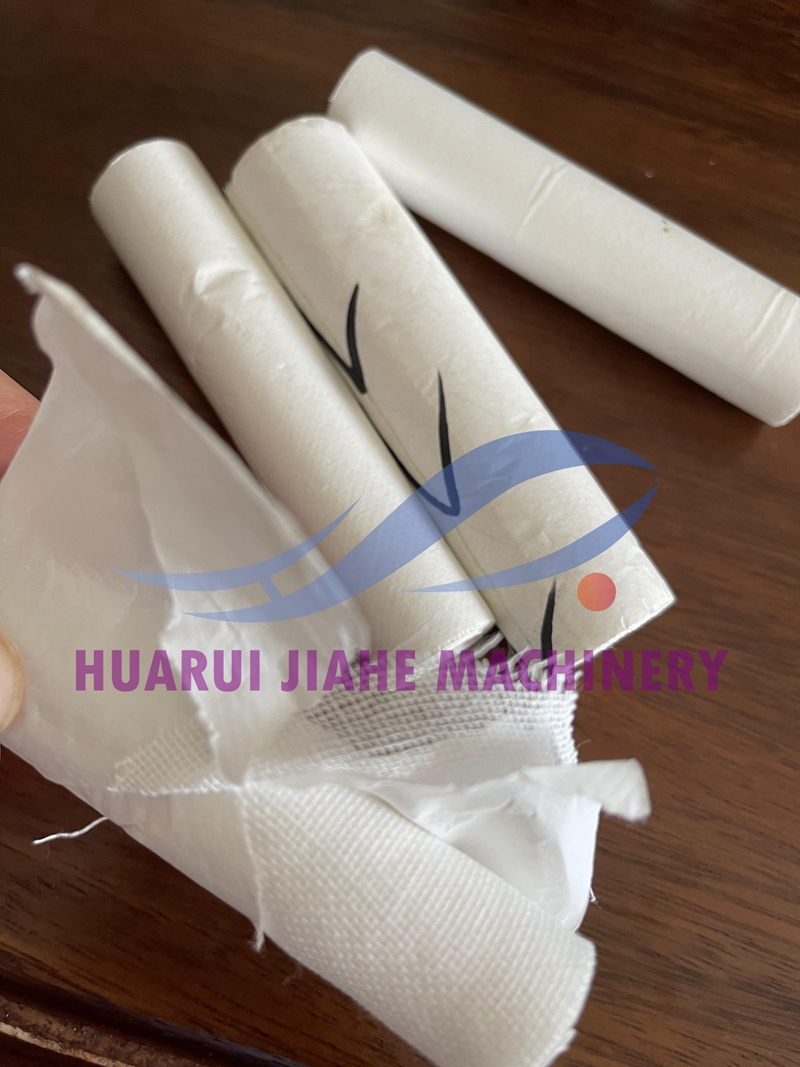

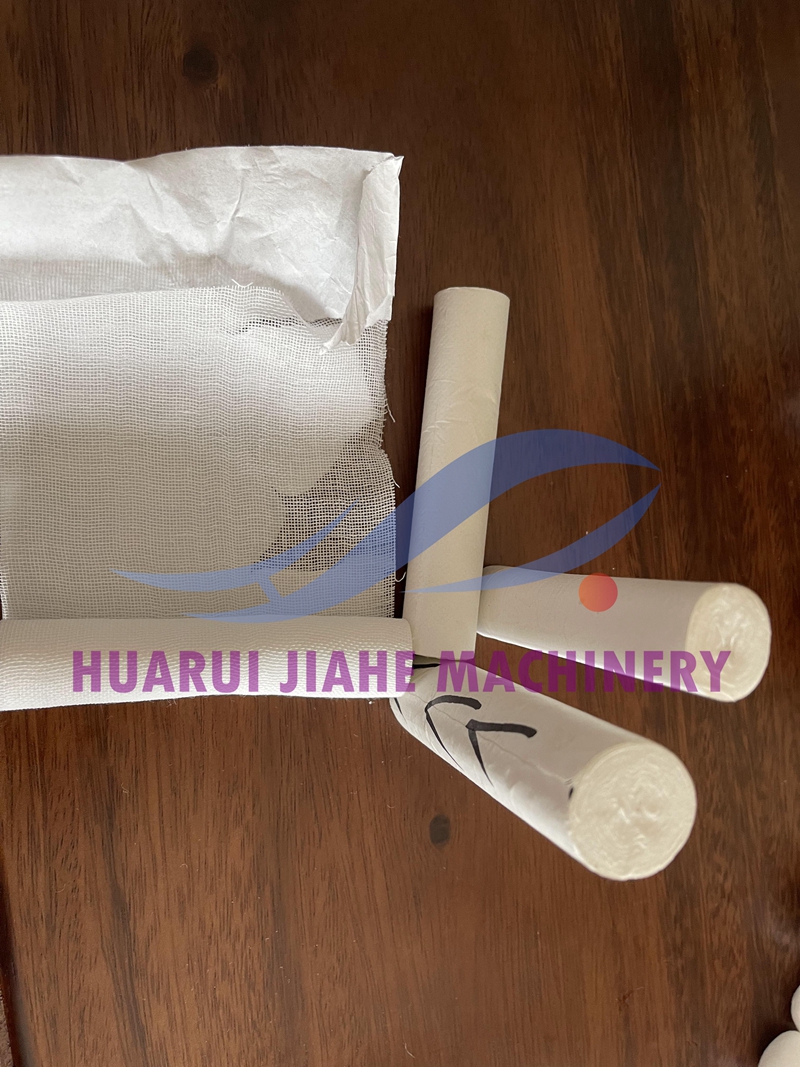

  • 3.  Product from this machine:

微信图片_20250401154028 微信图片_20250401154033
